Description
|
Power(W) |
Product Size（MM） |
Product Weight（G） |
220V LED Chip | DOB 85-265V LED Chip |
| LH-FL002-10W | 130*90*20 | 220 | 2835-18v-12LED | 3030-6v-12LED |
| LH-FL002-20W | 150*105*25 | 280 | 2835-18v-24LED | 3030-6v-24LED |
| LH-FL002-30W | 133*177*25 | 440 | 3030-6v-36LED | 3030-6v-36LED |
| LH-FL002-50W | 230*160*40 | 740 | 3030-6v-72LED | 3030-6v-60LED |
| LH-FL002-100W | 290*187*45 | 1160 | 3030-6v-108LED | 3030-6v-120LED |
| LH-FL002-150W | 340*40*235 | 1700 | 3030-6v-180LED | 3030-6v-180LED |
| LH-FL002-200W | 360*270*50 | 2340 | 3030-6v-216LED | 3030-6v-240LED |

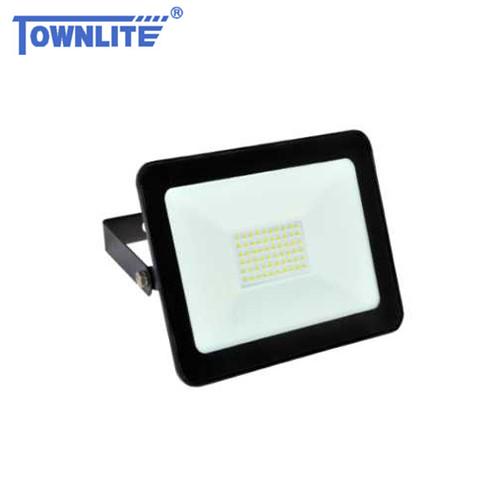

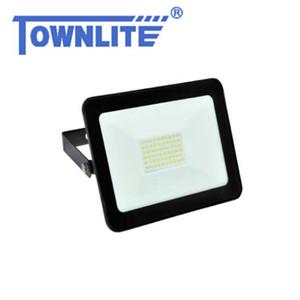

Parameter of High lumens outdoor SMDled flood light
|
Model Type |
10-200w |
|
Input Voltage |
AC85-265V |
|
Frequency Range |
50/60Hz |
|
Power Factor (PF) |
> 0.9 |
|
Led Power |
10-200w |
|
Led Luminous Efficiency |
≥110 lm/W |
|
Color Temperature |
2700-6500K |
|
Light Source |
SMD |
|
Working Temperature Beam angle |
-25°C~+55°C 120° |
|
Working Humidity |
10%~90% |
|
IP Rating |
IP65 |
|
Working Life |
50000H |
|
Materials |
Die-casting aluminum, glass and surface polyester electrostatic spraying |
