Description
1.Products Description:

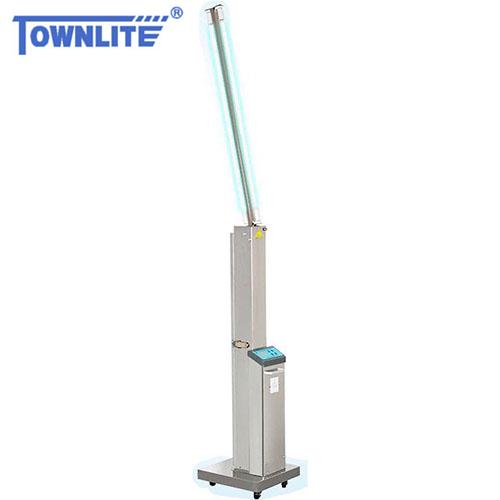

This product is made of stainless steel,with its double-tube structures, but also can be used independently ,the technical parameters are:
1.Tube Power:≥30W×2
2.Number of tubes:2
3.Applicable static area:≥30m2
4.Voltage:220V±10%,Frequency:50Hz±10%
5.Input power:180VA
6.UV wavelength:253.7nm
7.Irradiance:≥214uw/cm2
8.It is movable and foldable,the tube could be concealed inside,and adjusted to various angles:90°,135°,180°.
9.It is equipped with a timer equipment with the time limitation of 0-1440 min.
10.During the sterilization,if a person or an animal breaks into the room,the lamp will be alarmed and off,automatically open left.
2.Function:
Ultraviolet sterilizing trolley is mainly used in the medical and hygienic units as well as the industrial section of food and medicines for the air sterilization.
3.Method of usage
- This product can be used alone with single light tube, and the angle of the lamp arm can also be adjusted. Please close the safety door when it is not in use in order to avoid the damage of the light tube and also maintenance of the cleaning of the tubes.
- The timer can control the sterilizing time within 1440 minutes. And the circuit will be automatically closed when time is up.
- Every part of the truck should be tested beforehand in order to check whether it has the problem of leakage of electricity. And three-pins plug must have a land wire in order to avoid the electric shock.
- Please cut the electric circuit after the truck is used and then withdraw the plug from the socket.
4.Caution
1.The voltage range should be less than 10%,or will affect the rated life.
2.Four tube structures,the arm of lamp can be adjustable according to the angle.
3.The timer can set the sterilization time,the power will be cut off automatically.Follow the direction instruction.
4.Ensure the surface clean of UV lamp,or will affect the performance.
5.In case of any electricity risk.
6.After using turn off the plug of power.
7.Keep in the dry and clean room.
8.UV illumination less than 70% or more than 2000 hours working should change the lamp.
